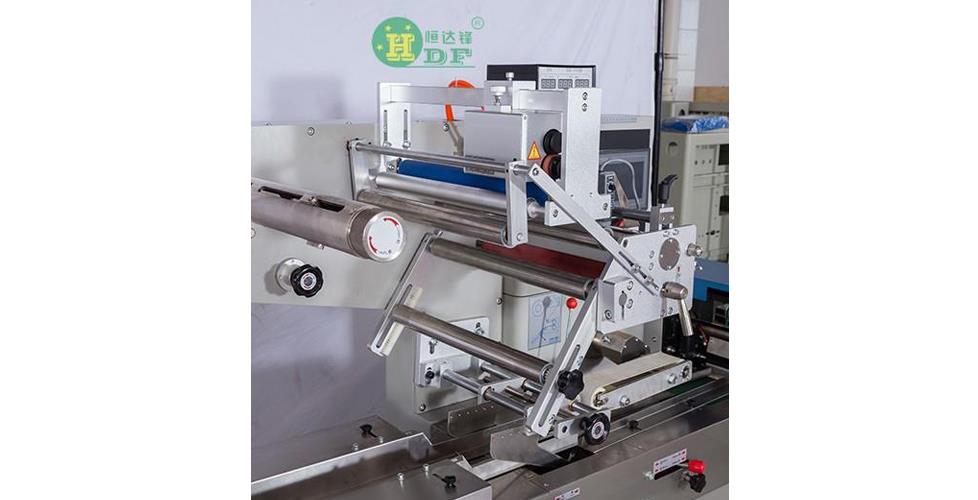

JBH-400D 柔紙巾、餐巾紙枕式包裝機
產品簡介：
本機適合于柔紙巾（乳霜紙）、餐巾紙的包裝；整機變頻器控制，袋長即設即切，無需調節空走，一步到位，省時省膜。人機界面，參數設定方便快捷；故障自診斷功能，故障顯示一目了然。
本機適合于柔紙巾（乳霜紙）、餐巾紙的包裝；整機變頻器控制，袋長即設即切，無需調節空走，一步到位，省時省膜。人機界面，參數設定方便快捷；故障自診斷功能，故障顯示一目了然。
產品介紹:
性能與特點：
Performance and feature：

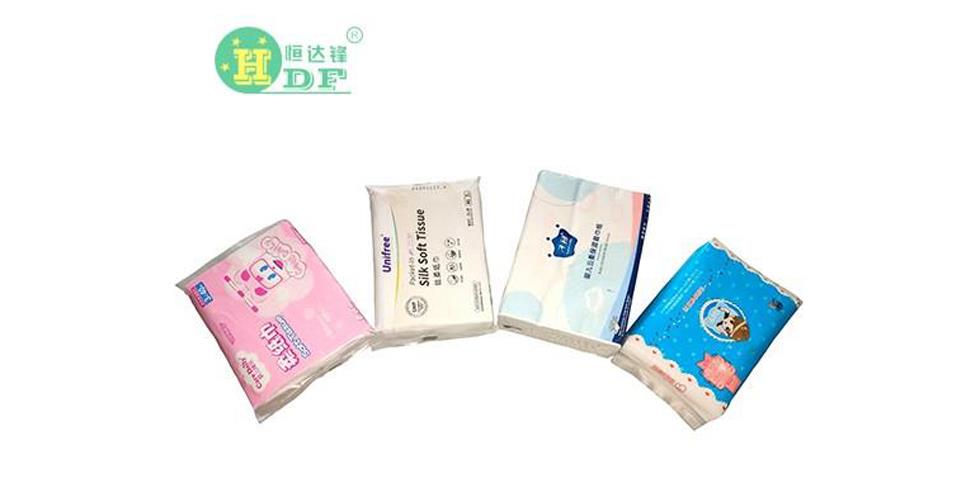

1、本機適合于柔紙巾（乳霜紙）、餐巾紙的包裝；
This machine is suitable for packaging soft tissues(Cream Paper) and napkins;
2、整機變頻器控制，袋長即設即切，無需調節空走，一步到位，省時省膜。
The whole machine is controlled by frequency converter, the bag length is set and cut immediately, no need to adjust the empty running, one step is in place, saving time and film.
3、人機界面，參數設定方便快捷；故障自診斷功能，故障顯示一目了然。
Man-machine interface, convenient and quick parameter setting; fault self-diagnosis function, fault display at a glance.
4、高感光度電眼色標跟蹤，數字化輸入封切位置，使封切位置更加準確。
High-sensitivity electric eye color mark tracking and digital input of the sealing and cutting position make the sealing and cutting position more accurate.
5、溫度獨立 PID 控制，更好適合各種包裝材質。
Temperature independent PID control, better suitable for various packaging materials.
6、定位停機功能，不粘刀，不浪費包膜。
ositioned stop function, no sticking to the knife, no wasting of film.
7、所有控制由軟件實現，方便功能調整和技術升級，永不落后。
All control is realized by software, which is convenient for function adjustment and technical upgrade, and never lags behind.
Performance and feature：
1、本機適合于柔紙巾（乳霜紙）、餐巾紙的包裝；
This machine is suitable for packaging soft tissues(Cream Paper) and napkins;
2、整機變頻器控制，袋長即設即切，無需調節空走，一步到位，省時省膜。
The whole machine is controlled by frequency converter, the bag length is set and cut immediately, no need to adjust the empty running, one step is in place, saving time and film.
3、人機界面，參數設定方便快捷；故障自診斷功能，故障顯示一目了然。
Man-machine interface, convenient and quick parameter setting; fault self-diagnosis function, fault display at a glance.
4、高感光度電眼色標跟蹤，數字化輸入封切位置，使封切位置更加準確。
High-sensitivity electric eye color mark tracking and digital input of the sealing and cutting position make the sealing and cutting position more accurate.
5、溫度獨立 PID 控制，更好適合各種包裝材質。
Temperature independent PID control, better suitable for various packaging materials.
6、定位停機功能，不粘刀，不浪費包膜。
ositioned stop function, no sticking to the knife, no wasting of film.
7、所有控制由軟件實現，方便功能調整和技術升級，永不落后。
All control is realized by software, which is convenient for function adjustment and technical upgrade, and never lags behind.
技術參數:
|
薄膜寬度 Film width(mm) |
Max.400 |
|
薄膜厚度 Film thickness |
2.5 um-7.0 um OPP 單層膜（可印刷） |
|
制袋長度 Bag length(mm) |
150-330 |
|
制袋寬度 Bag width(mm) |
50-180 |
|
產品高度 Products height(mm) |
Max.80 |
|
膜卷直徑 Film roll diameter(mm) |
Max.350 |
|
包裝速度 Packing speed |
40-120包/分 40-120bags/min |
|
電源規格 Power supply specifications |
220V，50/60HZ，3Kw |
|
機器尺寸 Machine size(mm) |
長500×寬855×高1450 Length500 × Width855 × Height 1450 |
|
機器重量 Weight |
580kg |
